Version 3.9

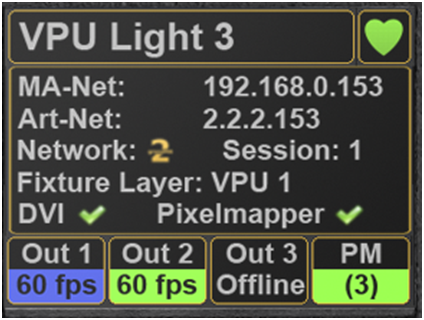

Internal Screen VPU light

The internal screen offers the following information:

Title	The headline informs about the name of the MA VPU light.
State	Indicates the status of the MA-Net. See in (1)
MA-Net	The actual IP-Address
ART-Net	The actual pixel mapper IP-Address
Network	grandMA1 or grandMA2 possible
Session	The number of the session this MA VPU is part of.
Fixture Layer	The selected fixture layer
DVI	green: active red: not active
Pixelmapper	green: active red: not active
OUT 1/2/3	blue: Output is active + EDID is active green: Output is active black: Offline, this output is not active fps: frames / second
PM (pixel mapper)	Number of outputs
