Keyboard Shortcuts

grandMA3 User Manual » Device Overview » Shortcuts » Keyboard Shortcuts
Version 2.3

Keyboard shortcuts allow fast operation of the console and onPC command wings via the (internal) keyboard.

Some of these user-editable shortcuts are for general use and override other commands. Others are related to specific windows and pop-ups.

The KeyboardShortcut keyword is used to edit and list the keyboard shortcuts.

Keyboard Shortcuts are part of the user profile. This makes it possible for every user/user profile to use their own shortcut definitions within a show file.

Turn the Keyboard Shortcuts on

  • Tap ShCuts next to the command line or press F10 on your keyboard.
Update this description text.
Keyboard shortcuts enabled
The keyboard shortcuts are turned on (yellow text).

Turn the Keyboard Shortcuts off

  • Tap ShCuts next to the command line or press F10 on your keyboard.
Update this description text.
Keyboard shortcuts disabled
The keyboard shortcuts are turned off (white text).
Hint:
In certain menus and pop-ups where the shortcuts are not relevant, they are switched off and back on automatically. The shortcut icon turns red.

Shortcut Examples

The images are showing the activated shortcut menu. The menu color can be changed in the color theme.

The lavender text in the images shows the keyboard shortcuts when ShCuts is enabled.

Update this description text.

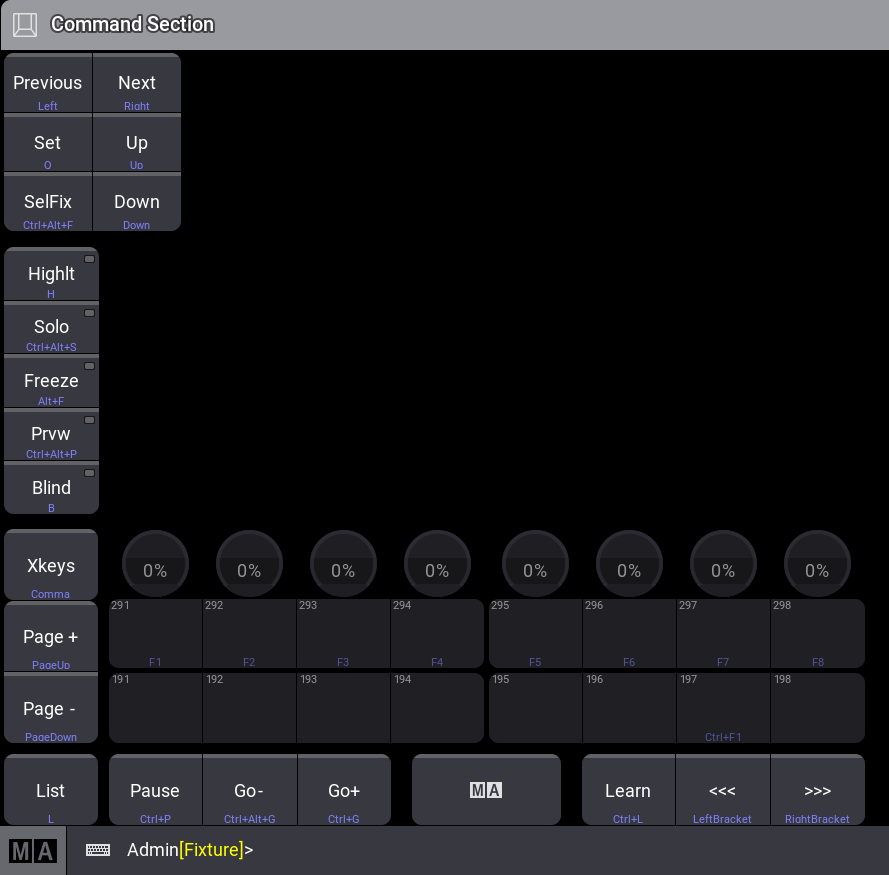

Command section window left
Update this description text.

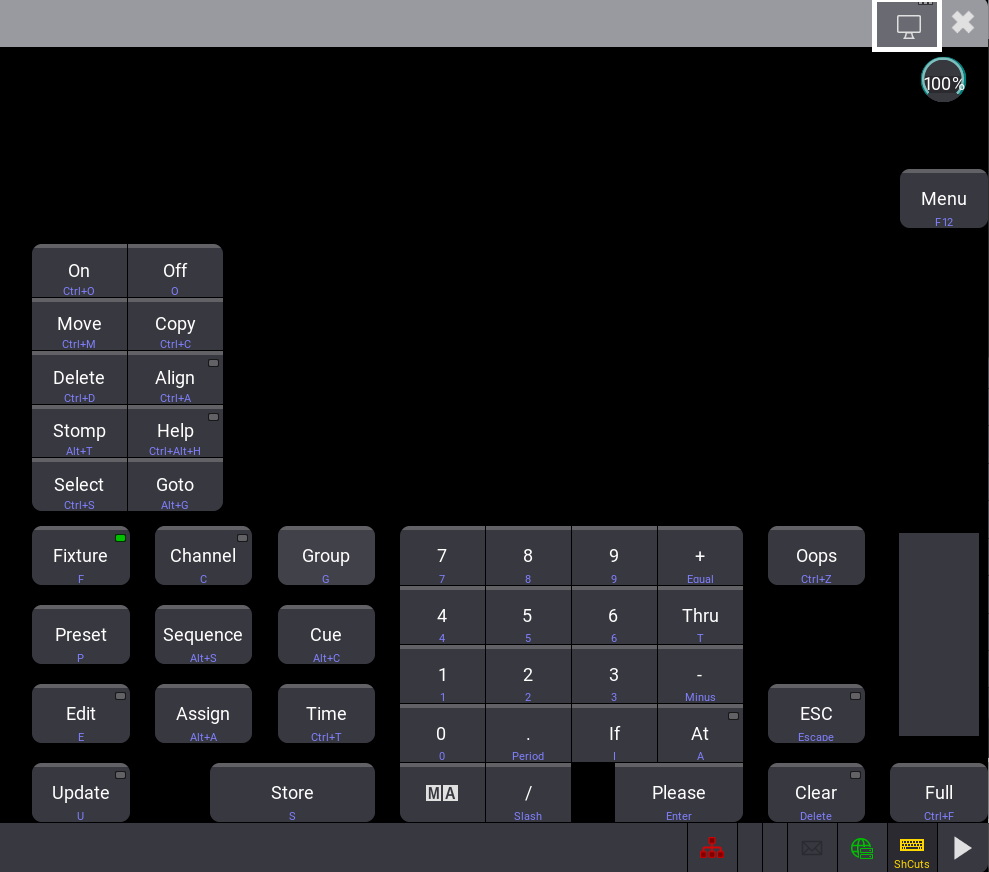

Command section window right
Update this description text.

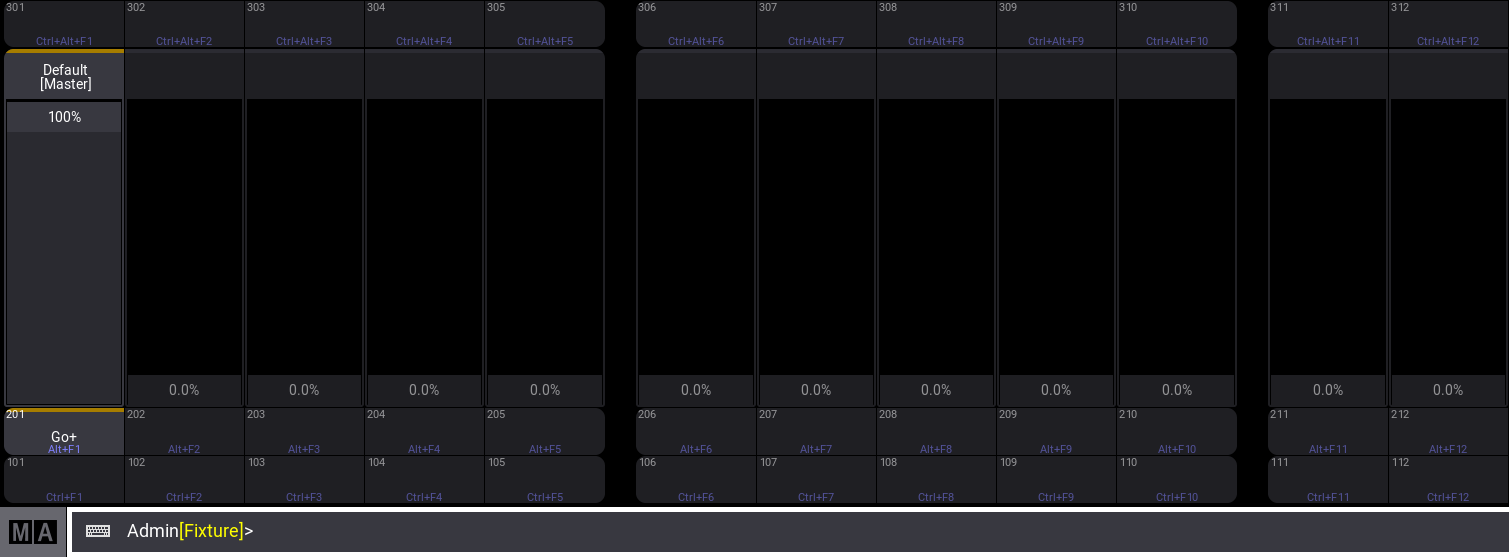

Playback controls window

Keyboard Shortcuts Window

  1. To edit the shortcuts, open the Preferences and Timings window.
  2. Tap Keyboard Shortcuts.

The Keyboard Shortcuts window opens:

Update this description text.

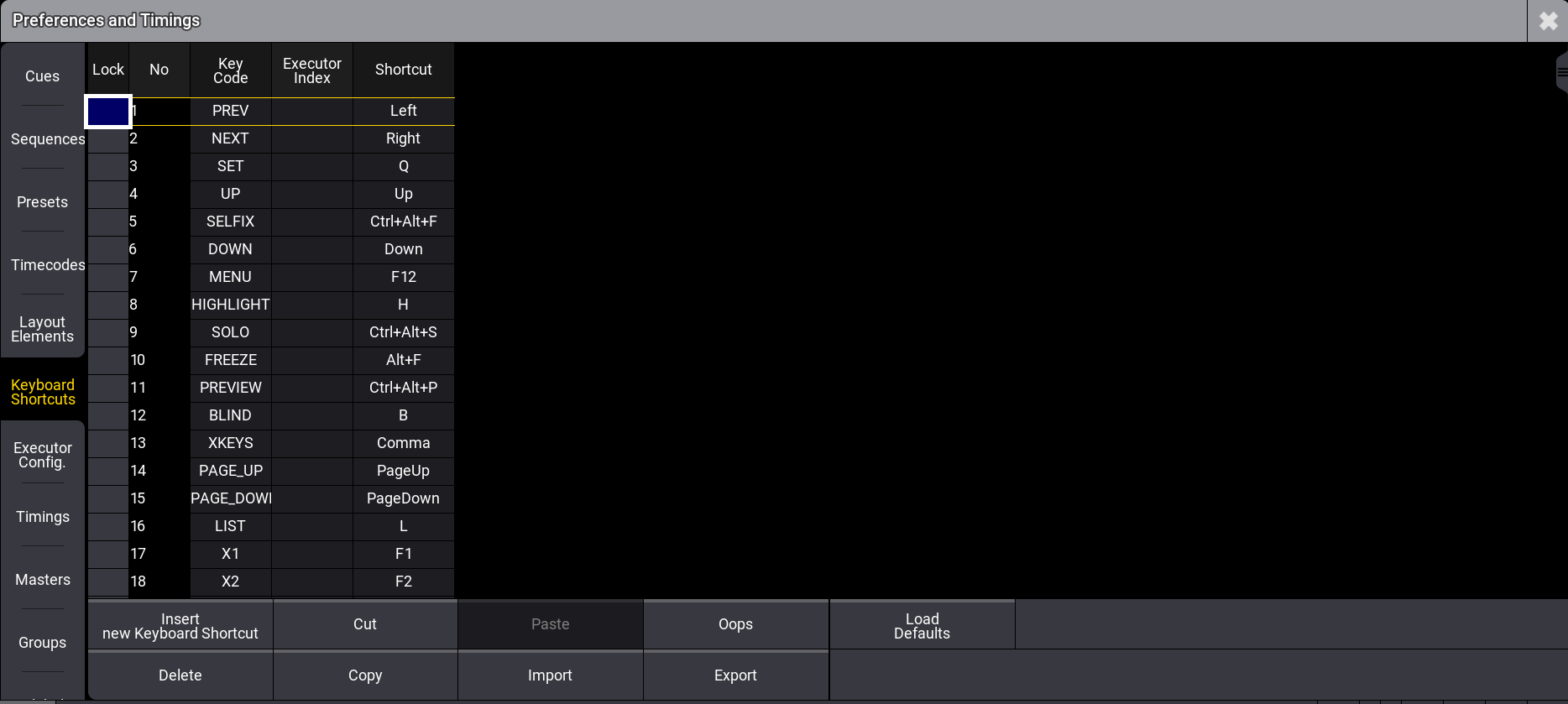

Edit Keyboard Shortcuts window
Add Keyboard Shortcuts
  1. To add a new keyboard shortcut at the end of the list, scroll down, tap New KeyboardShortcut, and then tap Insert new Keyboard Shortcut. A new empty cell is generated at the end of the list.
  2. Tap and hold or right-click on the empty cell. The Select Key Code pop-up opens.
Update this description text.

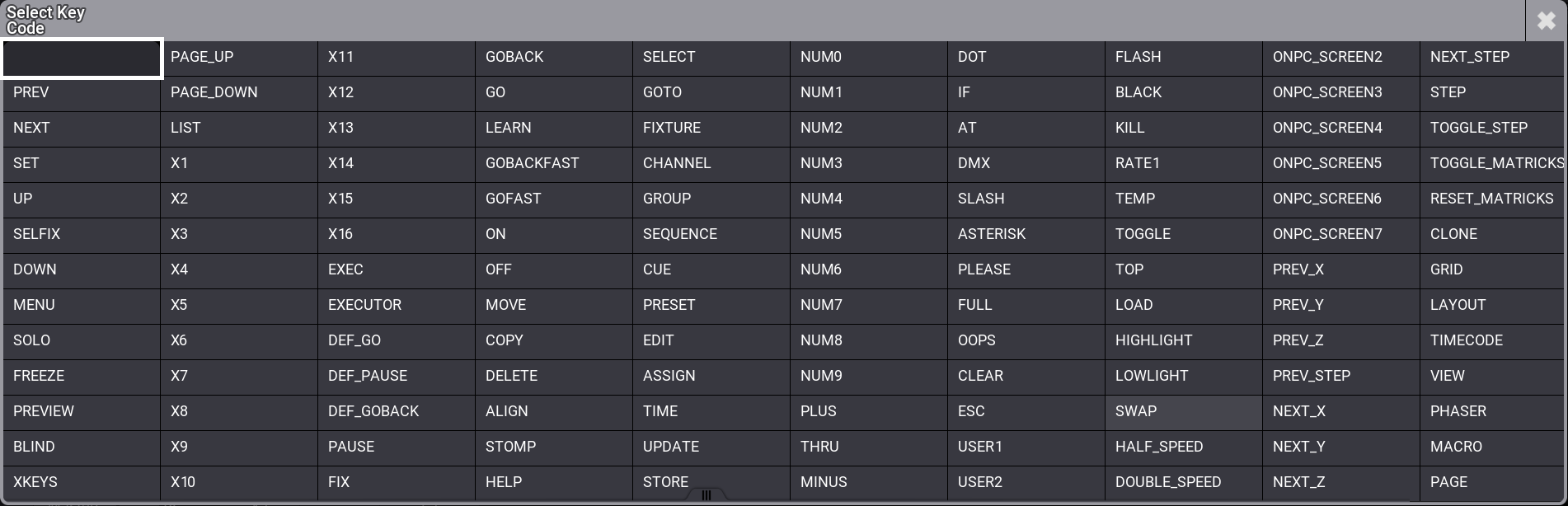

Select key code window
  1. Select the desired key code from the pop-up list. The pop-up closes.
  2. To open the Edit Keyboard Shortcut pop-up, tap and hold or right click on the empty cell in the Shortcut row.
    Update this description text.
    Edit Keyboard shortcut pop-up
  3. To enter the desired shortcut, press the relevant keys. The pop-up closes.
As Enter can also be used as a shortcut, it is not possible to close the Edit keyboard shortcut pop-up with Enter.
  • To confirm the shortcut tap Ok.
  • To clear the shortcut, tap None.
  • To cancel the edit, tap X.
  1. If a keyboard shortcut already exists, a warning pop-up appears. Tap Yes to save the new shortcut.
Update this description text.

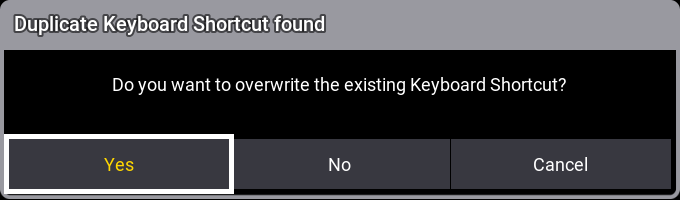

Warning pop-up

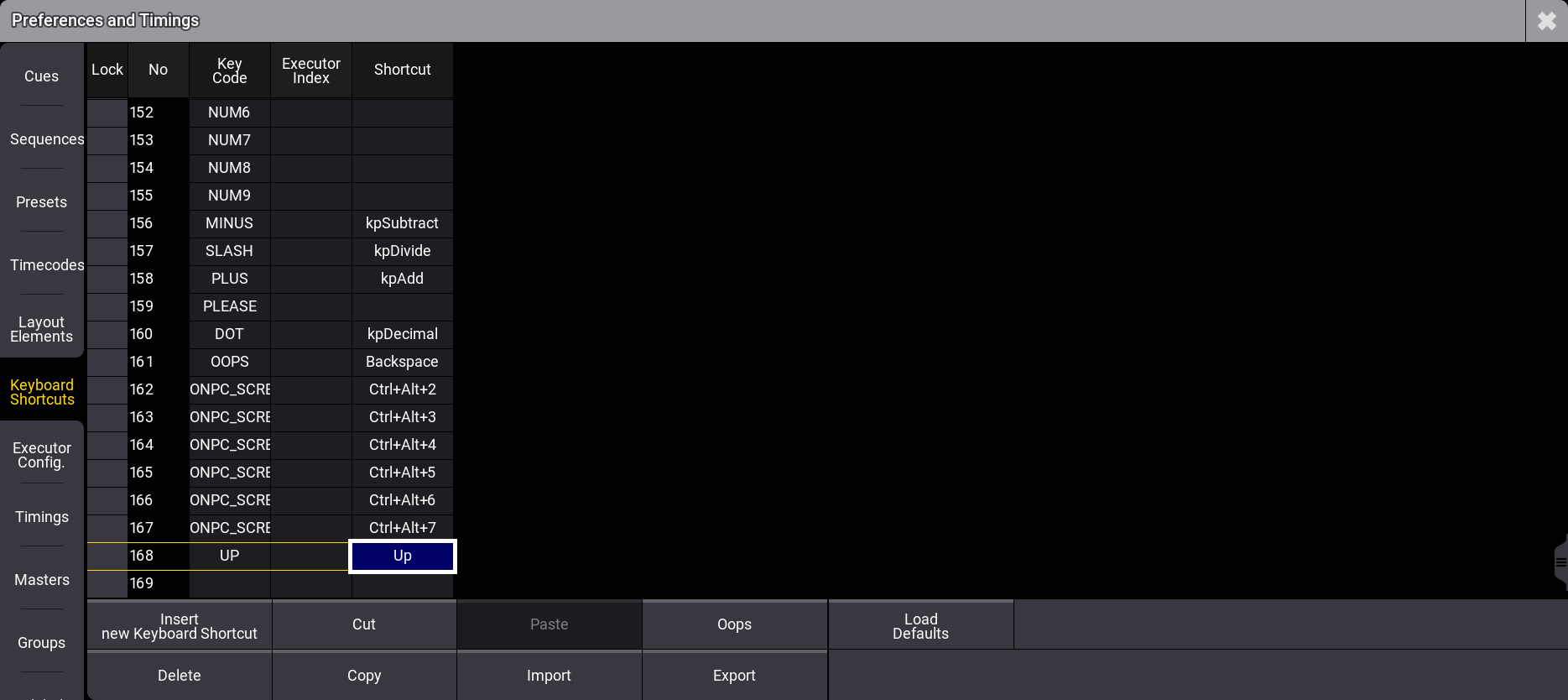

  1. The new shortcut is added to the list.
Update this description text.
New shortcut is added


Add Executor Index

The Executor Index column defines the executor that is triggered when executing the corresponding shortcut. The executor will have its shortcut displayed in lavender color in the playbacks control window when ShCuts is enabled.

Update this description text.

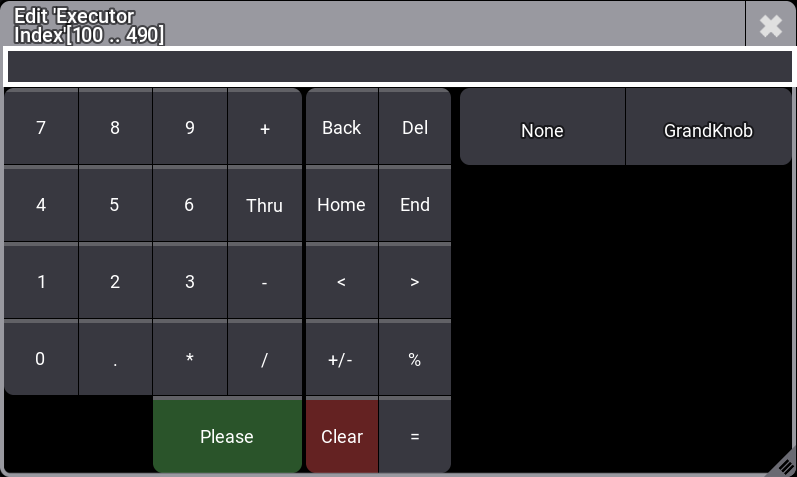

Executor Index - Calculator

Edit Existing Keyboard Shortcut

  1. To edit an existing shortcut definition, tap and hold the Keyboard Shortcut you want to edit.

The Edit keyboard shortcut pop-up opens:

Update this description text.
Edit keyboard shortcut pop-up
  1. Enter the new shortcut.

Delete Keyboard Shortcuts

  1. To select the keyboard shortcut to be deleted, tap the desired shortcut.
  2. Tap Delete.
  3. The keyboard shortcut is deleted. To undo a deletion, tap Oops.


Reset Keyboard Shortcuts to Defaults

  • To reset the keyboard shortcuts to their defaults, tap Load Defaults. The keyboard shortcuts are reset to their defaults.
Hint:
The Shift keys on the keyboard correspond with the MA keys on the console.

Import / Export Keyboard Shortcuts

  • To import or export the keyboard shortcuts, tap Import or Export.

By default, files will be exported to the relevant folder within the library folder structure, either on the local drive of the console or onPC station, or on a selected USB drive. For more information about this folder structure, see the Folder Structure topic.

For information about exporting and importing show data using command line syntax without the use of these menus, see the Export keyword and Import keyword topics.
