Organize Show Files

grandMA3 User Manual » Show File Handling » Organize Show Files

Version 2.2

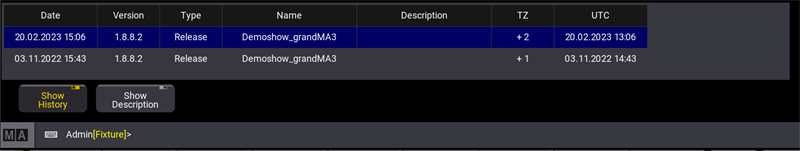

Show File History

To display the show file history:

1. Tap Load in the backup menu. Enable Show History in the bottom left corner of the menu.
2. Select a show file. The history of the selected show file is displayed at the bottom of the backup menu.

When loading the show file, the history gives information regarding:

• Date, time, and time zone (TZ)
• Used software version
• Software type
• Name

A new entry within the history will be entered when the show file is saved again and one of these criteria has changed:

• Version
• Type
• Name
• Time zone
• Description

The newest entry is on top of the history list.

---

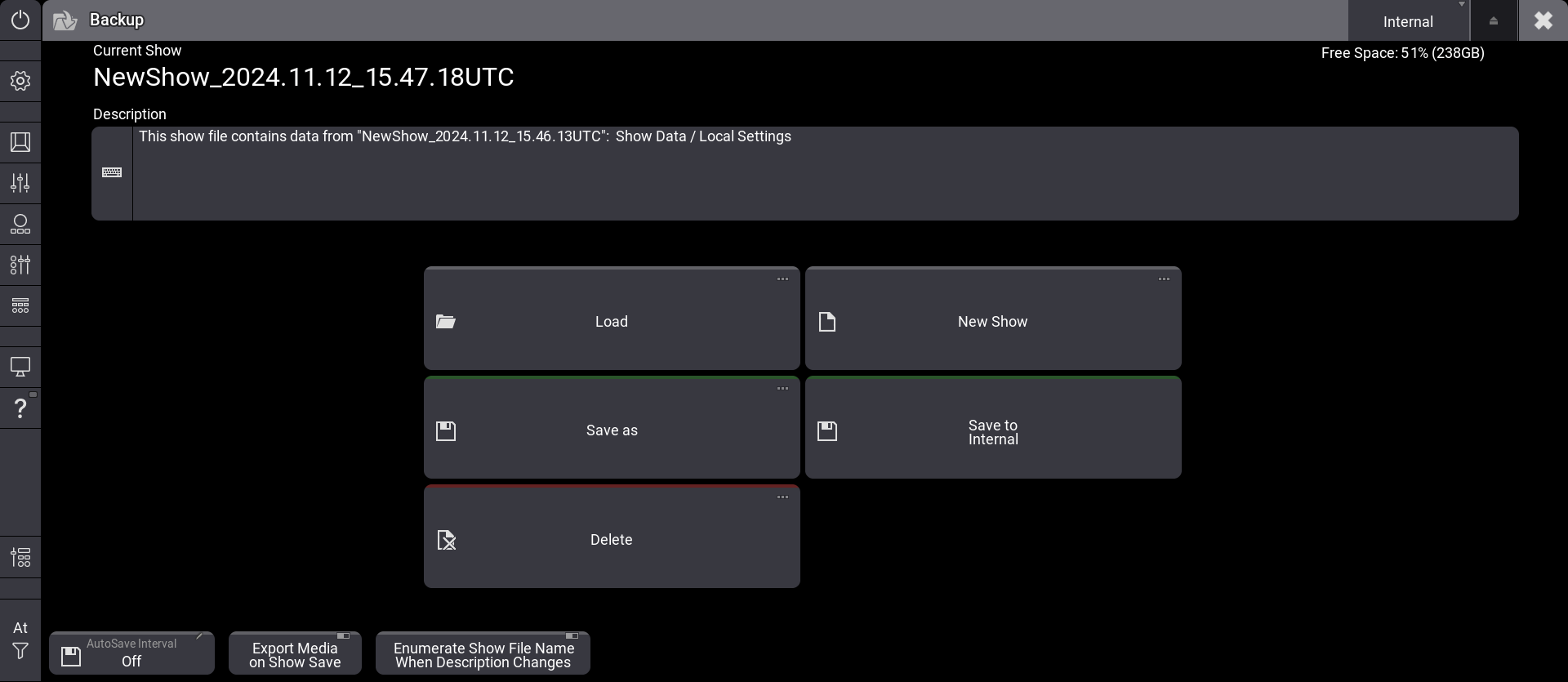

Add a Description

To add a description to the current show file, use the description area at the top of the backup menu. To add another line, press Please.

Modifying or entering a description will only be applied to the show file when saving it afterward.

	Hint:
	When you create a new show file with kept show segments, the defined show segments are displayed in the Description area. For more information, see New Show File.

---

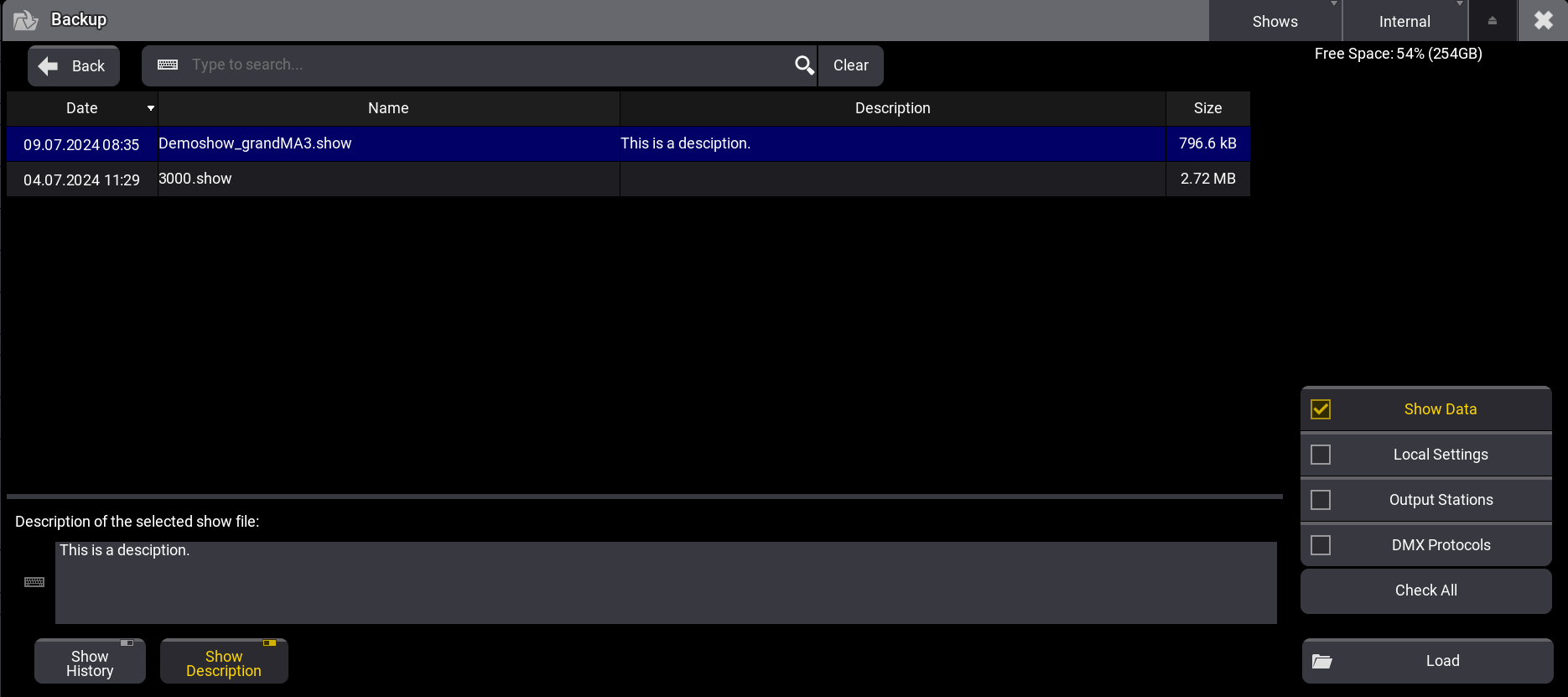

Display the Description

To see the description of a show file:

1. Press Menu and then tap Backup. The backup menu opens.
2. Tap Load. The first line of the description is already shown in the Description column.
3. Enable Show Description and select a show file. The whole description of the selected show file is shown.

---

Add Automatic Numbering

The setting Enumerate Show File Name When Description Changes in the backup menu provides an automatic increase of a 3-digit number. The number will be added to the end of the show file name if the description is changed when saving the show.

• To separate the show file name from the number, you can add a hyphen (-), an underscore (_), or any other character to separate the name from the numbers at the end of the show file name.
• Enumerating a show file can also be called with the /Enumerate option. For more information see /Enumerate option keyword.

	Hint:
	If the original show file name is too long to add the number, the command line will return an error. In this case, the former show file name will be used again.

Load a Show File During Startup

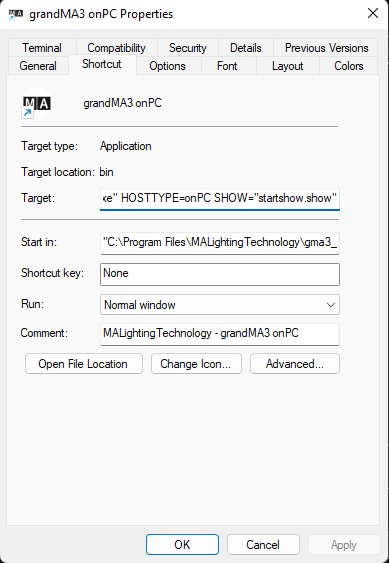

A show file or a plugin can be defined to be loaded upon starting the grandMA3 onPC application.

To do so, add the SHOW or RUNPLUGIN parameter to the shortcut that launches the onPC application:

• "C:\Program Files\MALightingTechnology\gma3_x.x.x\bin\app_system.exe" HOSTTYPE=onPC SHOW="startshow.show"
• "C:\Program Files\MALightingTechnology\gma3_x.x.x\bin\app_system.exe" HOSTTYPE=onPC RUNPLUGIN=\"startplugin.xml\"-y
  • x represents the grandMA3 version number.
  • y represents the number of the Lua component inside the plugin, that shall be started, e.g., 1.
  • It is not recommended to specify a path for the plugin although the plugin may be put into a subfolder.

In addition, the optional parameters NOLOAD and CLEANSTART are also available when starting onPC.

• NOLOAD will not load the last show file but start with an empty show. Other device related configurations are kept.
• CLEANSTART will reset device related configuration back to default and come up with an empty show file.

	Hint:
	Do not use spaces in a show file name when loading a show during startup.

---

Export Media on Show Save

To save media files (e.g. images, videos, sounds) to the gma3_library folder, activate the Export Media on Show Save function. Tap Backup and Export Media on Show Save.

---

grandMA2 to grandMA3 Show File Converter

To learn more about how to convert show files from grandMA2 to grandMA3, see grandMA2 to grandMA3 Show File Converter.
