Fixture Sheet
|
grandMA3 User Manual » Operate Fixtures » Fixture Sheet
|
Version 2.2
|
The fixture sheet shows all the patched objects in the show file with an FID or a CID. For more information, see Fixture Sheet Modes. This is usually every object that needs to be controlled in the show. Read the Patch and Fixture Setup topic to learn how to add objects to the show.
The fixture sheet is a window that can be created like any other window. For more information, see Add Window.
Open the Add Window menu and tap Fixture Sheet under the Common tab. The fixture sheet opens:

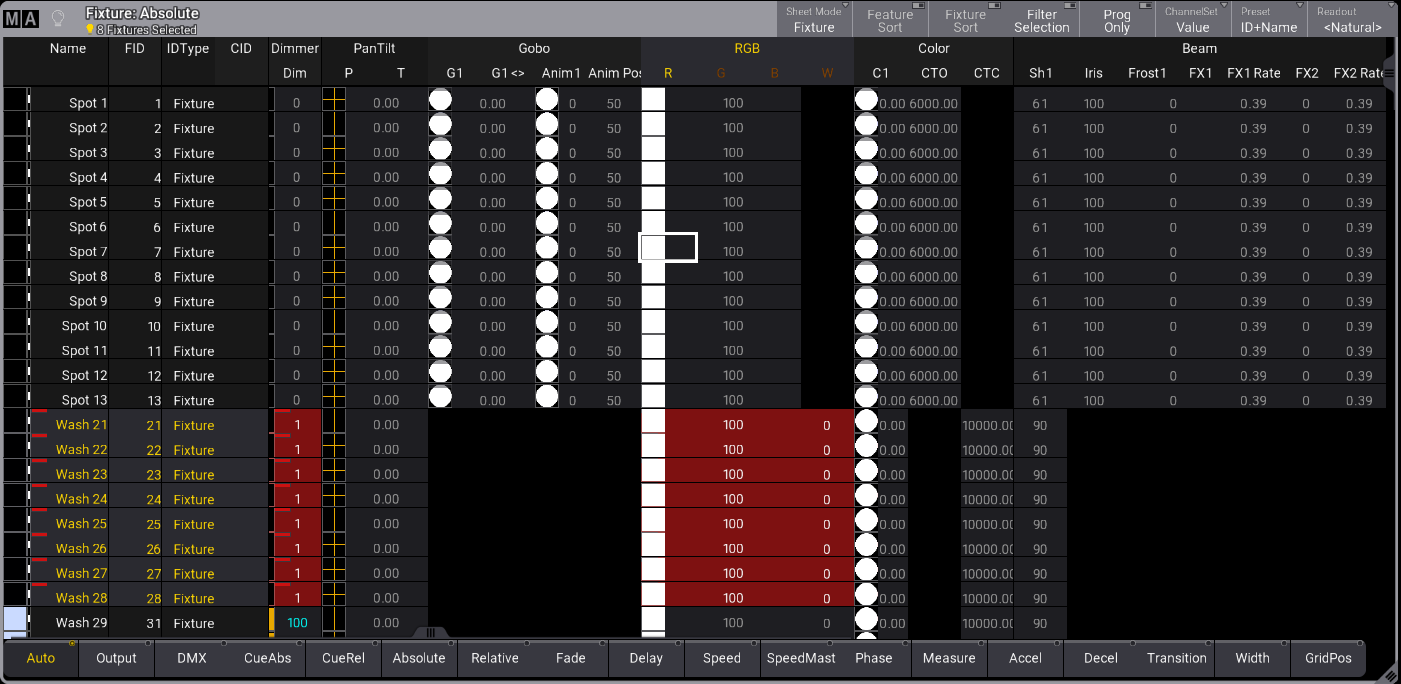

Fixture sheet with layer toolbar enabled
Four fixture sheet modes are available: Fixture, Channel, Dimmer+, and Sheet/Filter. For more information, see Fixture Sheet Modes.
The layer toolbar gives quick access to all available layers.
Filters, worlds, and the selection can be assigned to the fixture sheet. This will, for example, reduce the number of fixtures and/or attributes displayed on the sheet. Information about the filter is shown in the title bar. For more information, see Create a World and Create a Filter.
