Technical Data
Technical Data
Important:
Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²).
The required power cable must meet the country's standards.
Only qualified personnel is allowed to perform work on the power cable!
Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²).
The required power cable must meet the country's standards.
Only qualified personnel is allowed to perform work on the power cable!
Important:
Power cable and connector are not included in the delivery.
Power cable and connector are not included in the delivery.
- DMX: The maximum length of the cable is 350 m (in ideal conditions).
- Use CAT-5e Ethernet cable or higher. Max. length of the cable 75 m.
| Technical Data | |
|---|---|
| Parameters | 4 096 (HTP/LTP) |
| Parameters Mode 2 | not applicable (no Mode 2) |
| Operating voltage | 100-240 V AC, 50/60 Hz |
| Net weight | 4 kg / 9 lbs |
| Power | max. 100 VA |
| Dimensions | 482 x 249 x 87 mm / 19 x 10 x 3.5 in |

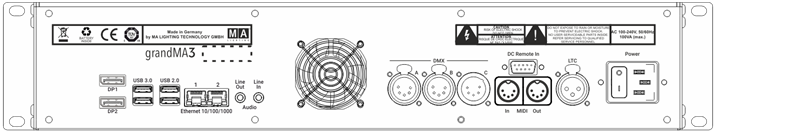

Outputs grandMA3 onPC rack-unit
| Number | Connector |
|---|---|
| 2x | DisplayPort 1.2 for external screens |
| 2x | USB 3.0 (type A) max. 900 mA |
| 2x | USB 2.0 (type A) max. 500 mA |
| 2x | RJ 45 Ethernet 10 / 100 / 1000 |
| 1x | Audio Line Out (mini jack 3.5 mm) |
| 1x | Audio Line In (mini jack 3.5 mm) |
| 2x | DMX512-A OUT (5pin XLR female) |
| 1x | DMX512-A IN (5pin XLR male) |
| 1x | GPI General Purpose Interface (D-SUB DE9 female) DC Remote In |
| 1x | MIDI In (5pin DIN female) |
| 1x | MIDI Out (5pin DIN female) |
| 1x | LTC Linear Timecode (3pin XLR female) |
| 1x | IEC connector |
