Technical Data
Technical Data
Important:
Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²).
The required power cable must meet the country's standards.
Only qualified personnel is allowed to perform work on the power cable!
Only use adequately protected power cables (min. Ø = 3 x 1.0 mm²).
The required power cable must meet the country's standards.
Only qualified personnel is allowed to perform work on the power cable!
Important:
Power cable and connector are not included in the delivery.
Power cable and connector are not included in the delivery.
Hint:

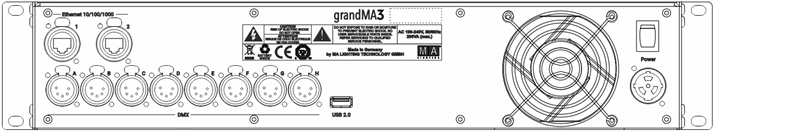

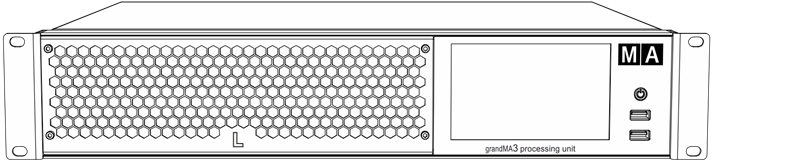

The processing units M, L, XL have an equal front panel and rear panel.
The processing units M, L, XL have an equal front panel and rear panel.
- DMX: max. length of the cable 350 m (in ideal conditions).
- Use CAT-5e Ethernet cable or higher. Max. length of the cable 75 m.
| Technical Data grandMA3 processing unit M, L, XL | |
|---|---|
| Operating voltage | 100-240 V AC, 50/60 Hz |
| Net weight | 5 kg / 12 lbs |
| Power | max. 200 VA |
| Dimensions | 482 x 372 x 87 mm / 19 x 15 x 4 in (width x depth x height) |
| Parameters | |
|---|---|
| grandMA3 processing unit M | 4 096 |
| grandMA3 processing unit L | 8 192 |
| grandMA3 processing unit XL | 16 384 |
Outputs grandMA3 processing unit M, L, XL
| Number | Connector |
|---|---|
| 1 x | powerCON TRUE1 (registered trademark of Neutrik AG, Liechtenstein) |
| 2 x | etherCON/RJ45 |
| 8 x | DMX512-A OUT (5pin XLR female) |
| 3 x | USB 2.0 (type A) |
