grandMA3 User Manual Publication

Connect Sound Out

grandMA3 User Manual » First Steps » Connect Sound Out
Version 2.1

The following grandMA3 products have a S/PDIF (Sony/Philips Digital Interface) connectors on the rear panel to output sound.

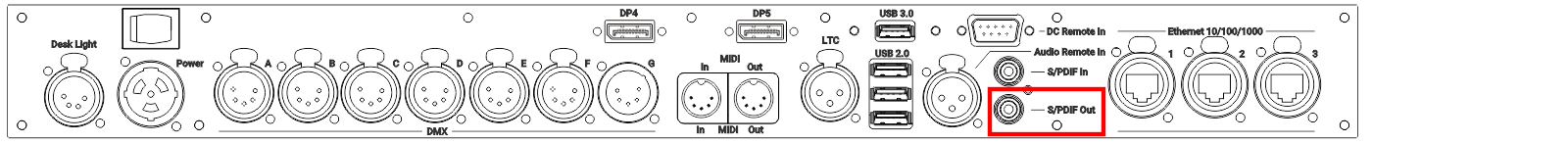

grandMA3 full-size (CRV) and light (CRV) rear panel - S/PDIF Out

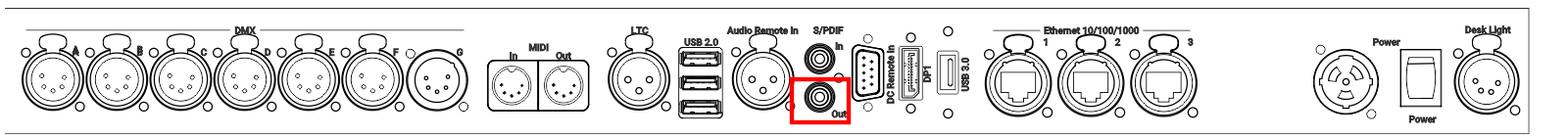

grandMA3 compact XT rear panel - S/PDIF Out

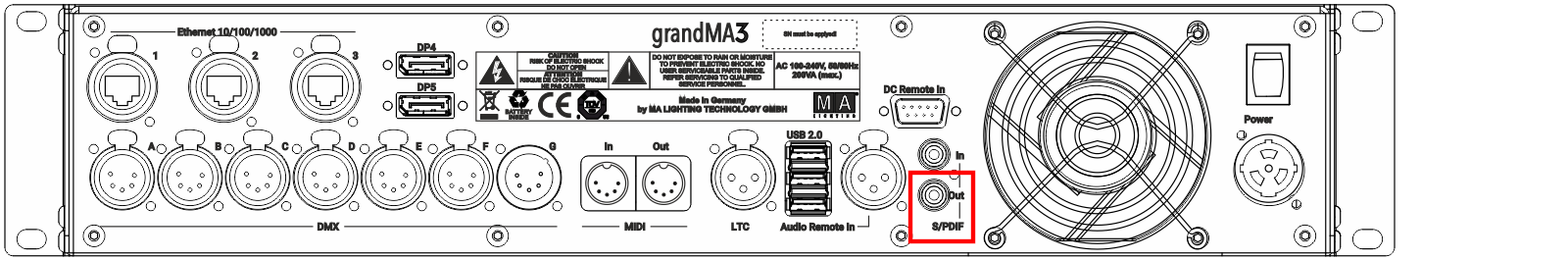

grandMA3 replay unit rear panel - S/PDIF Out

Sound Cards

To output sounds, third-party USB sound cards can be used as well.  To connect sound via USB, see Local Settings and Sound.

The following sound cards have been successfully tested:

  • Focusrite Saffire USB
  • M-Audio Air Hub
  • Palmer PLI 04 USB
  • Radial USB-Pro
Hint:
Other sound cards that have not been tested may work as well.
