grandMA3 processing units

grandMA3 User Manual » Device Overview » grandMA3 processing units
Version 2.1

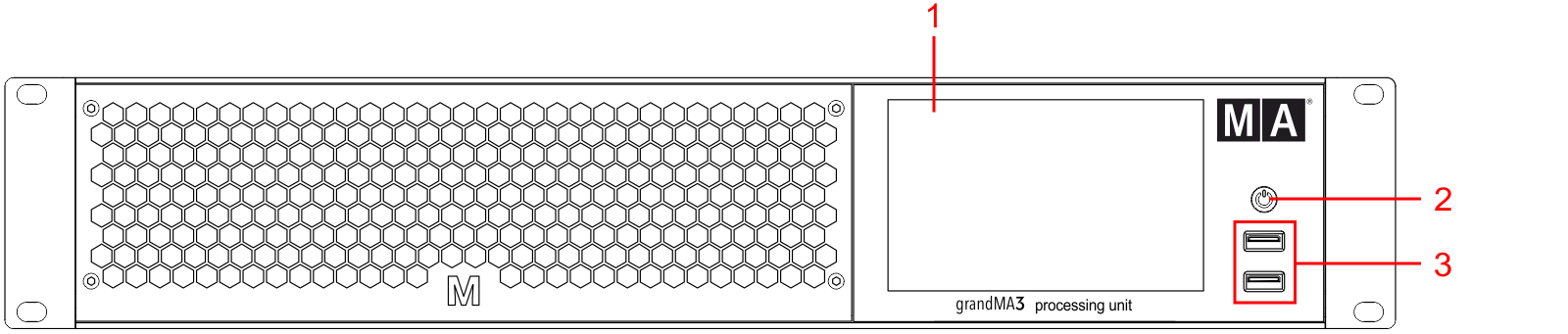

grandMA3 processing unit M, L, XL front panel
  1. Internal command multi-touch screen
  2. Power key
  3. USB 2.0 (type A)

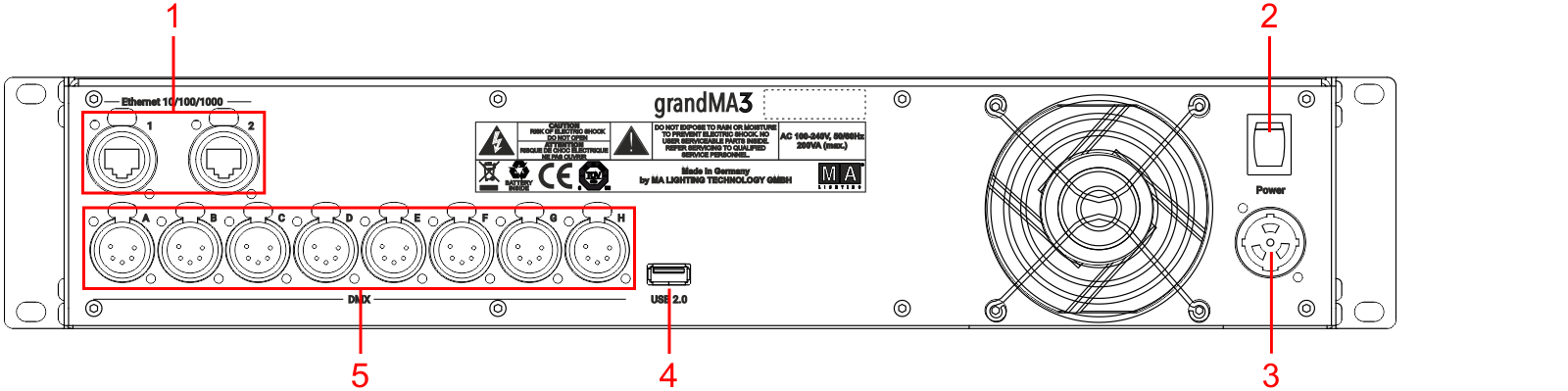

grandMA3 processing unit M, L, XL rear panel
  1. etherCON/RJ45
  2. Power switch
  3. powerCON TRUE1
  4. USB 2.0 (type A)
  5. DMX-512-A OUT (5pin XLR female)



For technical specifications, see Technical Data in the grandMA3 Quick Manual processing.
