grandMA3 User Manual Publication

grandMA3 onPC rack-unit

grandMA3 User Manual » Device Overview » grandMA3 onPC rack-unit
Version 2.1

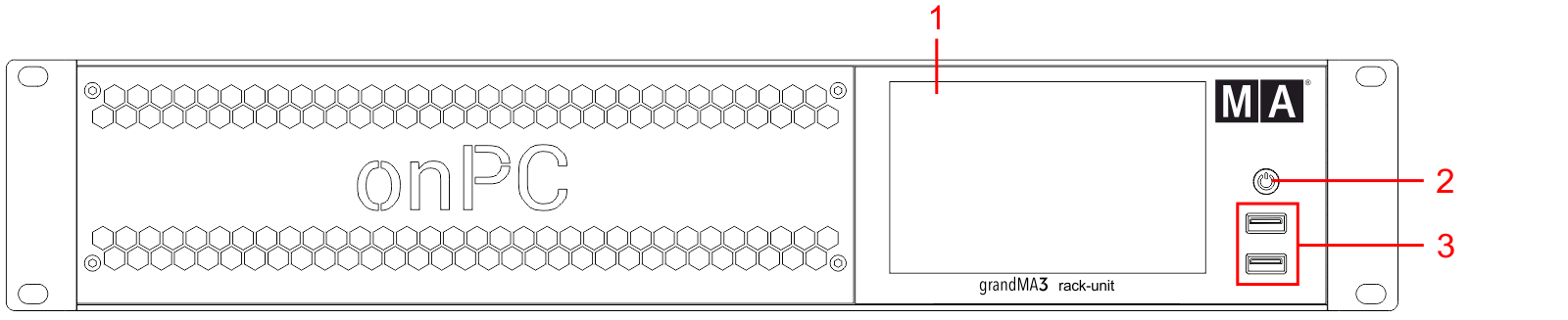

grandMA3 onPC rack-unit front panel
  1. Screen
  2. Power key
  3. USB 2.0

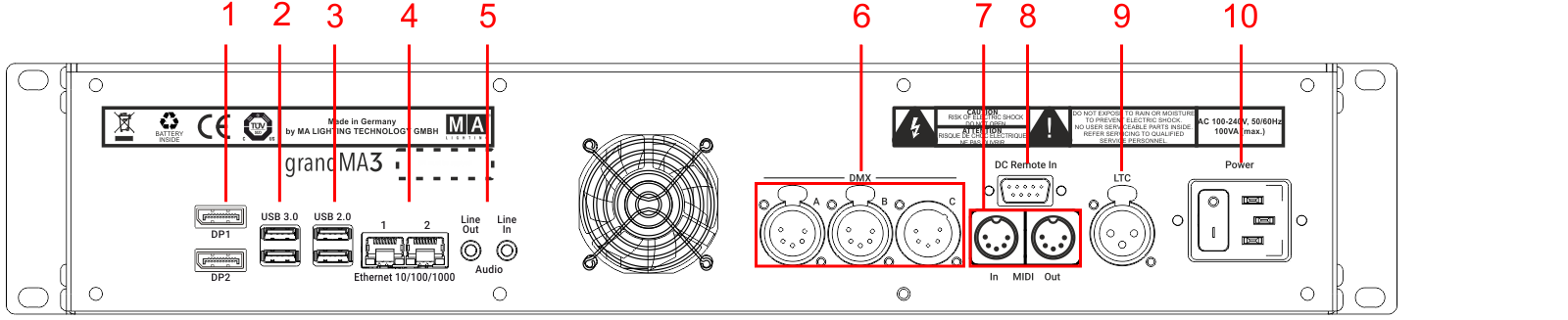

grandMA3 onPC rack-unit rear panel
  1. DisplayPort 1+2
  2. USB 3.0
  3. USB 2.0
  4. Ethernet 1+2
  5. Line In+Out
  6. DMX A-C
  7. MIDI In+Out
  8. DC Remote Control
  9. LTC
  10. Power switch + IEC connector

For technical specifications see Technical Data in the grandMA3 Quick Manual onPC rack-unit.
