grandMA3 onPC command wing XT

grandMA3 User Manual » Device Overview » grandMA3 onPC command wing XT
Version 2.1

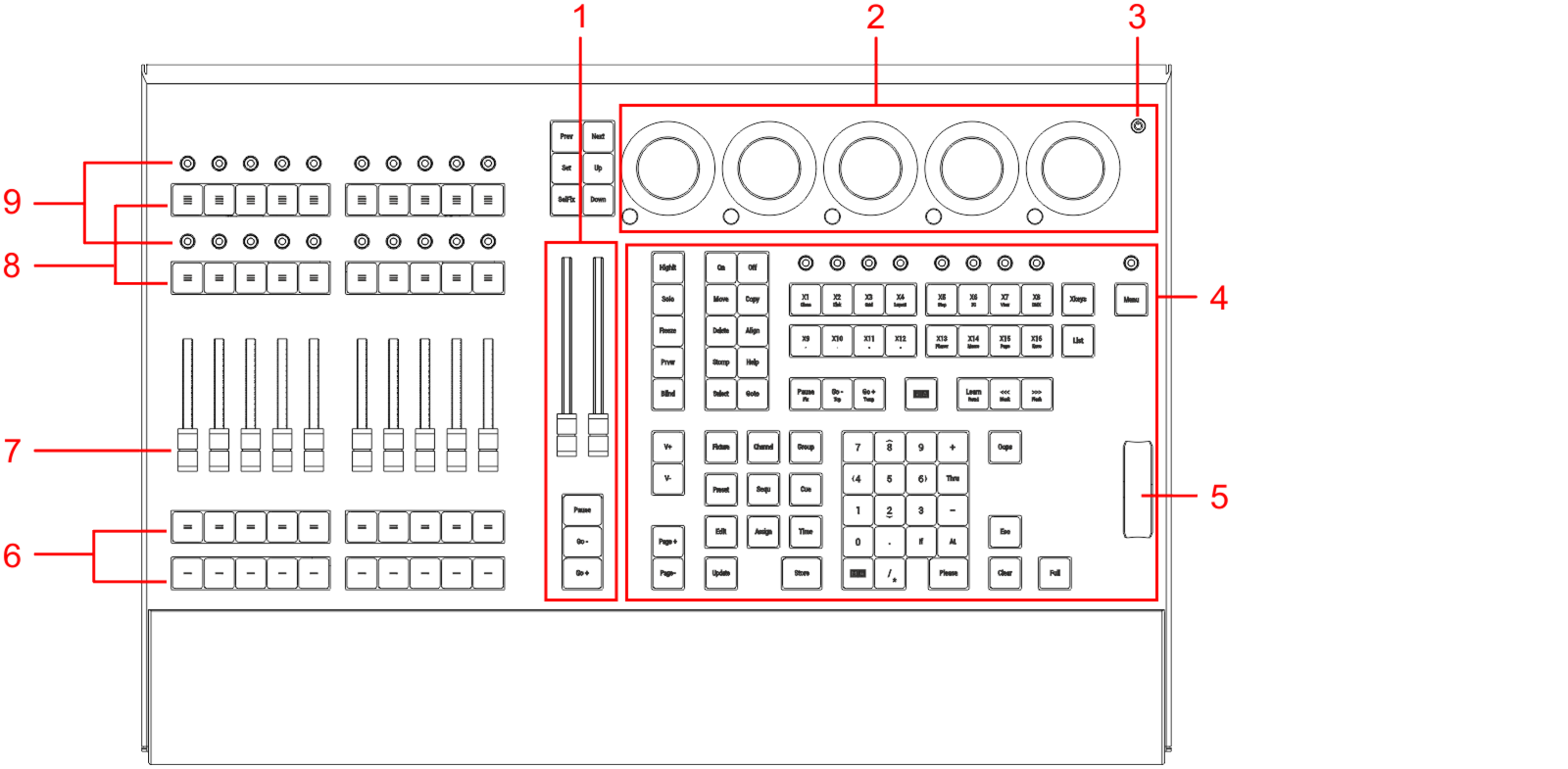

grandMA3 onPC command wing XT front panel
  1. Master area
  2. Dual encoder section
  3. Power key
  4. Command area
  5. Level wheel
  6. Executor buttons 101-190 + 201-290
  7. Executor faders 201-290
  8. Executor buttons 301-390 + 401-490
  9. Executor knobs 301-390 + 401-490

For more information about executors, see Executor elements.

grandMA3 onPC command wing XT rear panel
  1. DMX A, B, C
  2. MIDI In+Out
  3. DC Remote Control
  4. LTC
  5. Power switch
  6. IEC connector
  7. Desk light
  8. Kensington lock
  9. Line In+Out
  10. Ethernet 1+2
  11. USB 2.0
  12. USB 3.0
  13. DisplayPort 1-4

For technical specifications see Technical Data in the grandMA3 Quick Manual onPC command wing XT.
