grandMA3 User Manual Publication

Dual Encoders

grandMA3 User Manual » Device Overview » Control Elements » Dual Encoders
Version 2.1

The five dual encoders are used to adjust the different attributes of the fixtures. There are four different actions on the encoders:

  • Turn the inner ring to adjust the attribute "Coarse".
  • Turn the outer ring to adjust the attribute "Fine".
  • Press the inner ring to open a calculator to type in the value.
  • Press and turn the inner ring to adjust the attribute "Coarse" with a higher speed.
  • Press the dual encoder key to open a calculator to type in the value. The dual encoder key replaces the press function of the outer ring.
Hint:
For more information on the Readout and Resolution of the encoders, see Readout Keyword and Encoder Resolution topics.

These encoders are placed above the command section.

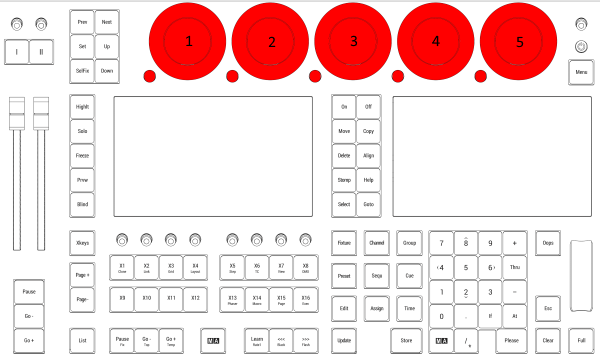

Location on grandMA3 full-size and grandMA3 light consoles​

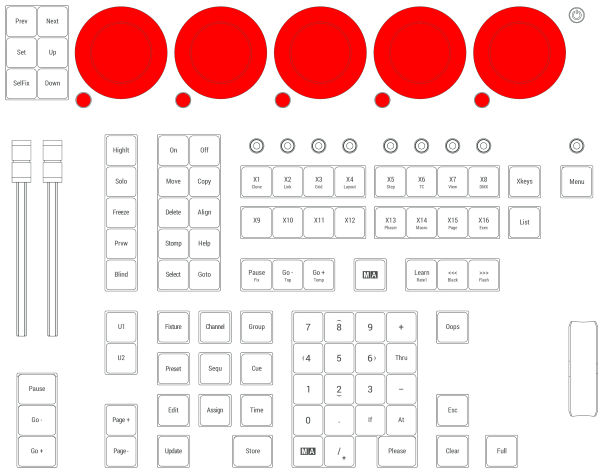

Location on grandMA3 compact consoles and grandMA3 onPC command wing​ and command wing​ XT



Each of the dual encoders is numbered 1 to 5 from left to right. There are three elements in each encoder:

The inner ring



The outer ring



The dual encoder key
