grandMA3 extension

grandMA3 User Manual » Device Overview » grandMA3 extension
Version 2.1

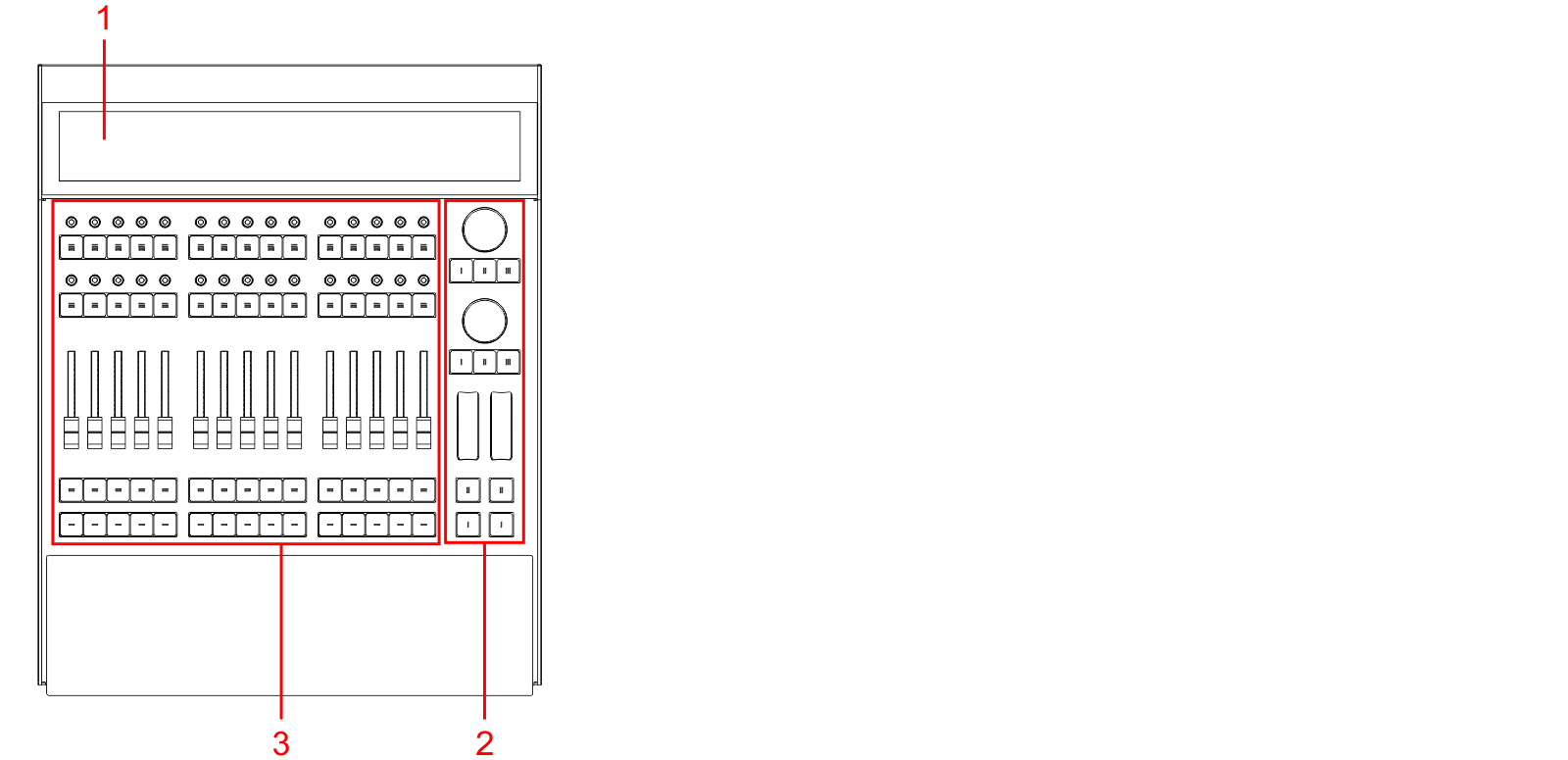

grandMA3 extension front panel
  1. Letterbox screen 10
  2. Custom section
  3. Executor section

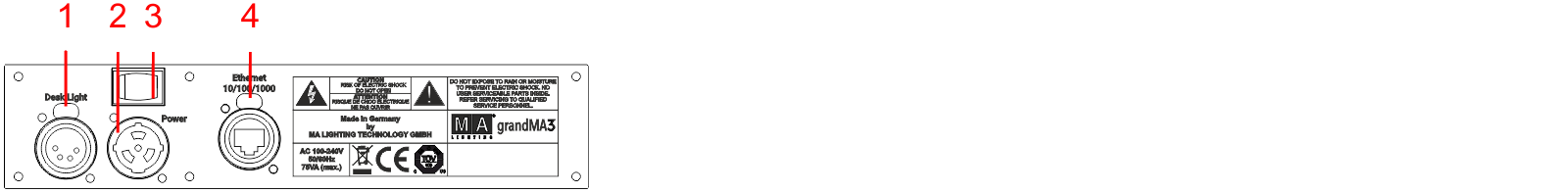

grandMA3 extension rear panel
  1. Desk light
  2. powerCON TRUE1 connector
  3. Power switch
  4. Ethernet

For more information, see the topics First steps, Connect grandMA3 extension.

For technical specifications, see Technical Data in the grandMA3 Quick Manual consoles.
