grandMA3 onPC command wing

grandMA3 User Manual » Device Overview » grandMA3 onPC command wing
Version 2.1

grandMA3 onPC command wing front panel
  1. Master area
  2. Dual encoder section
  3. Command area
  4. Level wheel
  5. Executor buttons 101-190 + 201-290
  6. Executor faders 201-290
  7. Executor buttons 301-390 + 401-490
  8. Executor knobs 301-390 + 401-490

For more information about executors, see Executor elements.

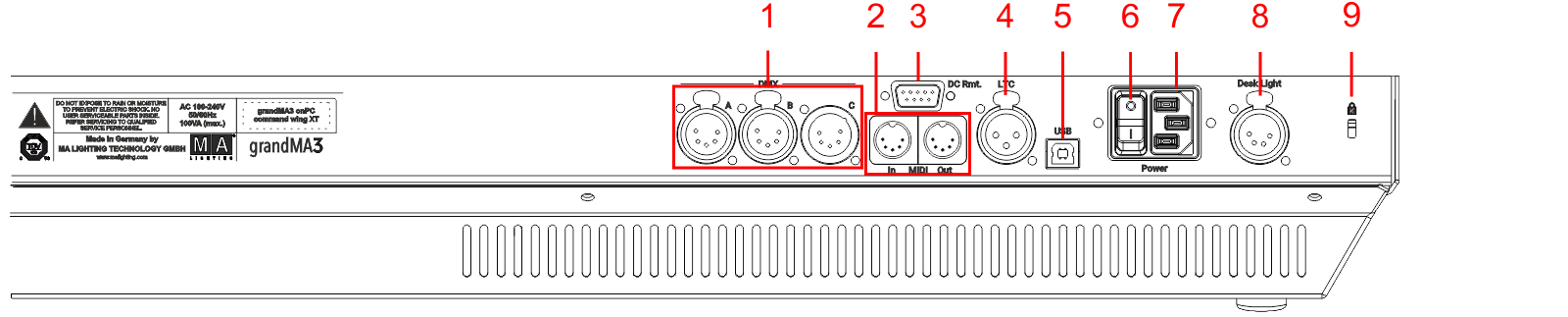

grandMA3 onPC command wing rear panel
  1. DMX A, B, C
  2. MIDI In+Out
  3. DC Remote Control
  4. LTC
  5. USB
  6. Power switch
  7. IEC connector
  8. Desk light
  9. Kensington lock

For technical specifications see Technical Data in the grandMA3 Quick Manual onPC command wing.
