grandMA3 Nodes DIN-Rail

grandMA3 User Manual » Device Overview » grandMA3 Nodes DIN-Rail
Version 2.1

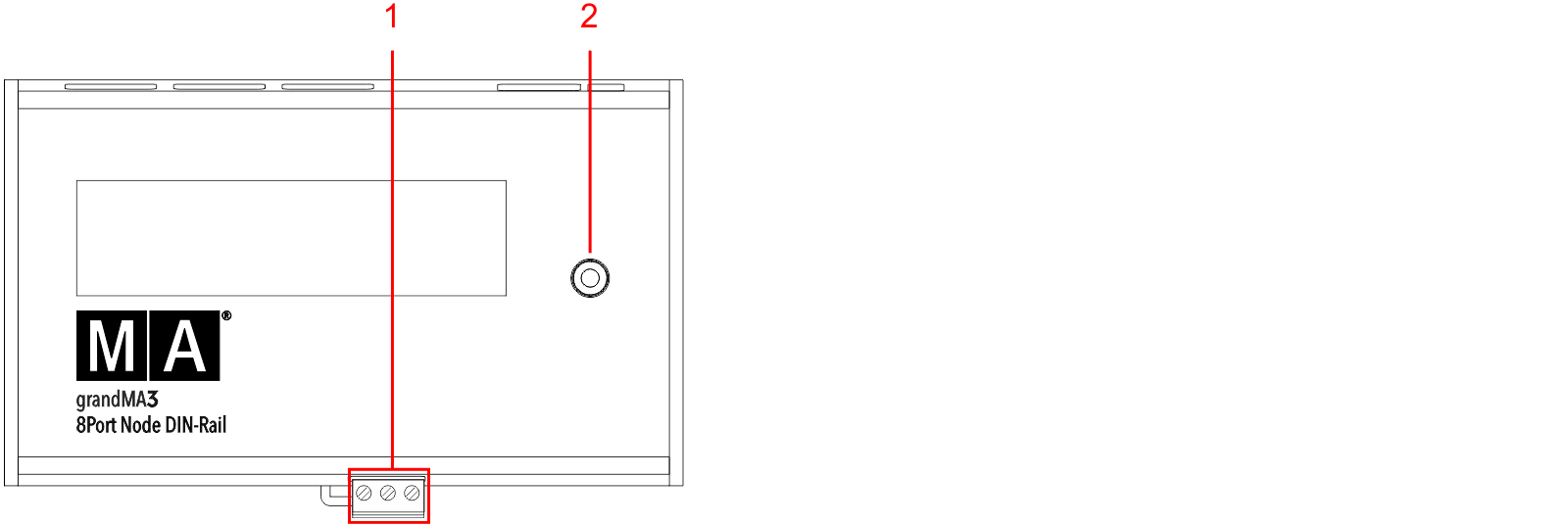

grandMA3 8Port Node DIN-Rail front panel
  1. Terminal block
  2. Rotary knob

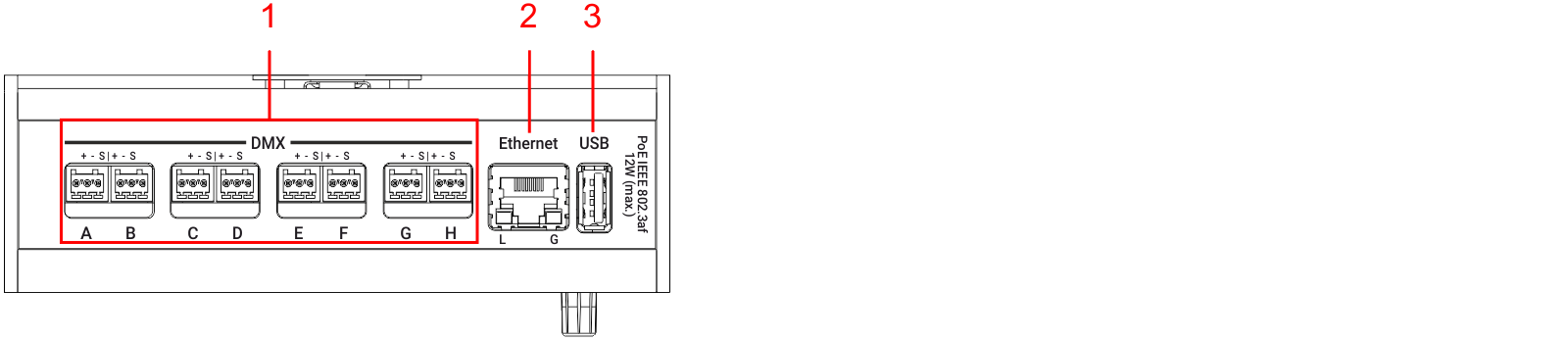

grandMA3 8Port Node DIN-Rail rear panel
  1. DMX
  2. Ethernet with L (link) and G (gigabit) LEDs
  3. USB 2.0

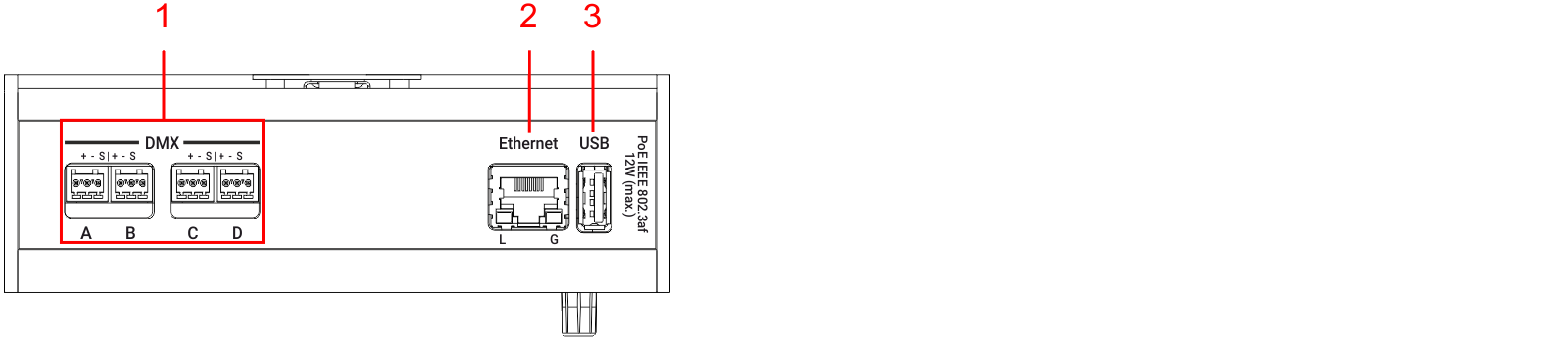

grandMA3 4Port Node DIN-Rail rear panel

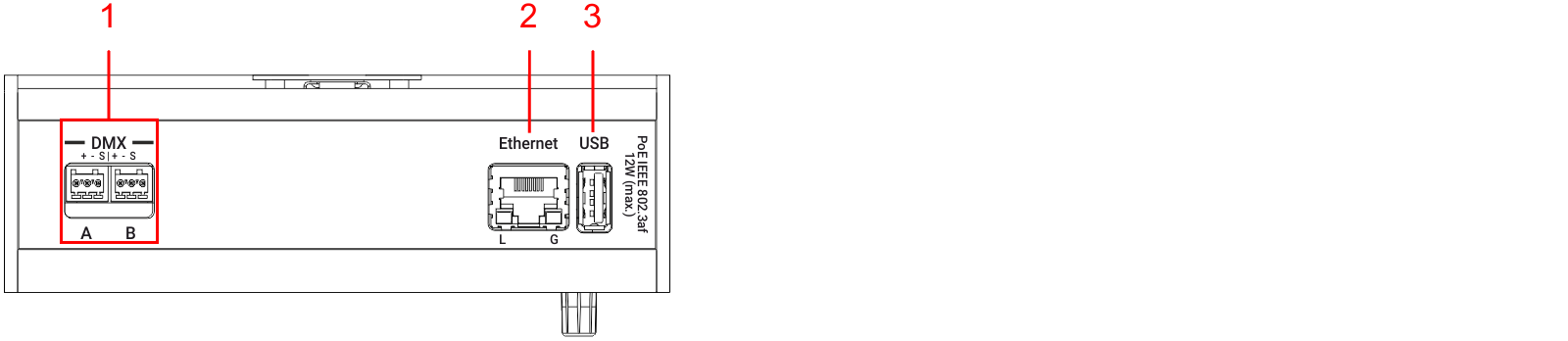

grandMA3 2Port Node DIN-Rail rear panel

For technical specifications, see Technical Data in the grandMA3 Quick Manual Nodes DIN-Rail.
