grandMA3 I/O Node DIN-Rail

grandMA3 User Manual » Device Overview » grandMA3 I/O Node DIN-Rail
Version 2.1

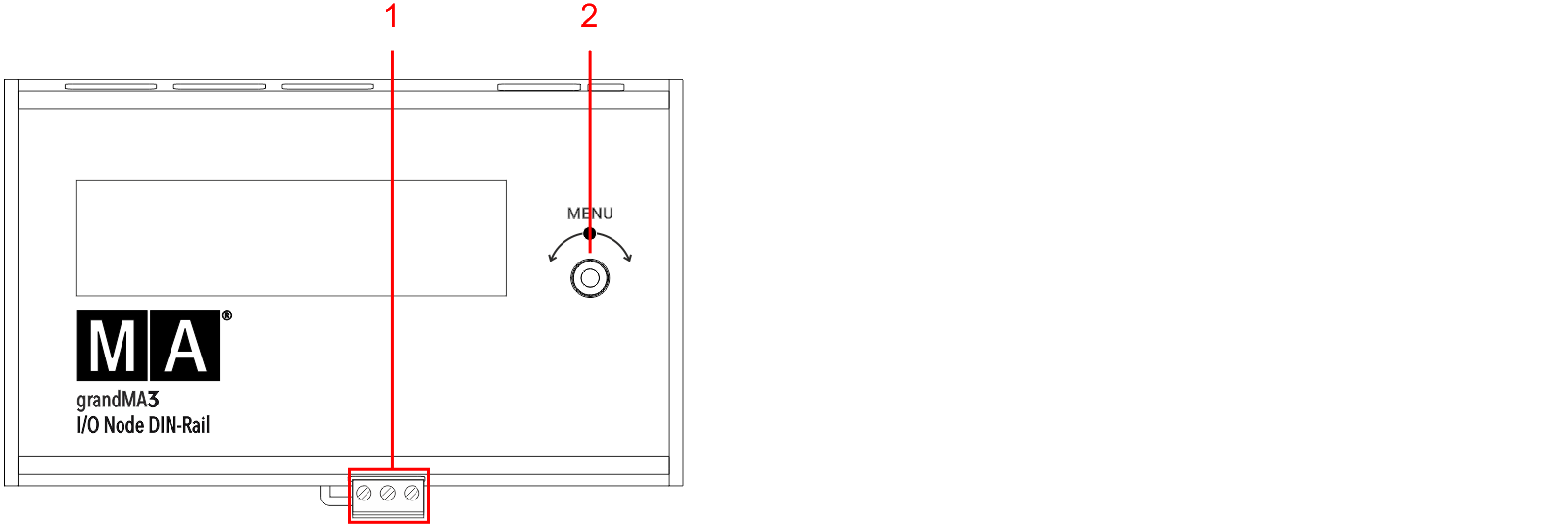

grandMA3 I/O Node DIN Rail front panel
  1. Terminal block
  2. Rotary knob

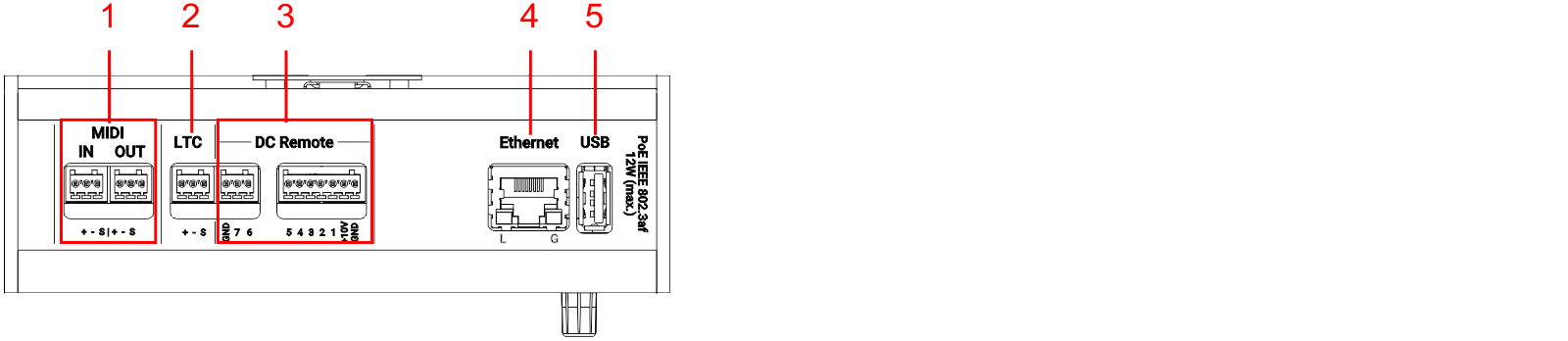

grandMA3 I/O Node DIN Rail rear panel
  1. MIDI In+Out
  2. LTC
  3. DC Remote Control
  4. Ethernet with L (link) and G (gigabit) LEDs
  5. USB 2.0

For technical specifications, see Technical Data in the grandMA3 Quick Manual I/O Nodes.
